Order Note

REFER TO DESIGN DATA LIST WHEN ORDER

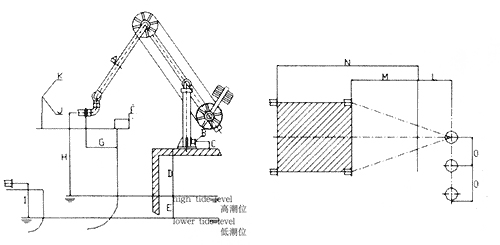

Data frame of design system of Loading Arms

Data list of design system of Loading Arms(Download)

	Meter	Specification
A		Diameter of loading Arms
B		Types and specifications of flange connecting to oil pipe on jetty
C		Height of entrance flange to berth face
D		Height of the highest tide level to berth face
E		Maximum tidal range
F		Height of ship rail
G		Minimum distance between flange face and ship edge
H		Height of ship flange centreline to the highest tide level (maximum ship with unload)
I		Height of ship flange centreline to the lowest tide level (minimum ship with full load)
J		Minimum height of ship flange centrelinge to deck
K		Maximum height of ship flange centrelinge to deck
L		Distance between centreline of riser and berh edge
M		Minimum distance between berth edge and ship flange
N		Maximum destance between berth edge and ship flange
O		Distance of risers of neighbour Loading Arms
P		Wind load:　woking state:KPa no working state:KPa
Q		Earthquake intensity
R		Control fornual: hydraulic:(handle electric)
S		Number
T		One control system control some Loading Arms
Loading Arms		No	Number	Cargo	Density(kg/m³)	Working pressure (Mpa)	Temperature℃
		1
		2
		3
		4
